Trackless Trolleys

Click here to see specifications
for the 2008 Flyer trackless trolleys
(in pdf format)

New Trackless
Hundreds of Philadelphia trackless trolley photos can be viewed at the
Trackless Trolley Photo Collection.

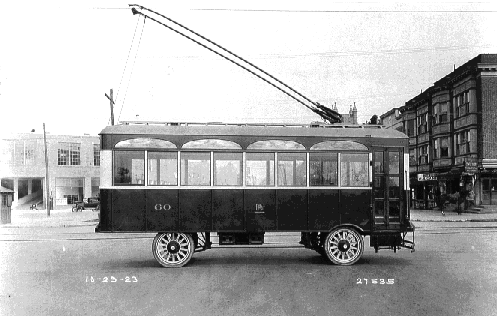

PRT trackless no. 60 Known by the rest of the world as trolleybuses, Philadelphia was the first city to regularly operate "trackless trolleys". Primitive tracklesses were first introduced in 1923, on Oregon Avenue in South Philadelphia. The photograph at left shows one of the first trackless trolleys, in service on Route 80 in October of that year. (Click on the image to view a larger photo.)

Philadelphia's second trackless route, Route 61 -- this time equipped with more modern trolley coaches -- began operation 1941. Route 61 ran the length of Ridge Avenue from Venice Island (an industrial island bounded by the Schuylkill Navigation canal in Manayunk) to Center City at 8th & Locust (later 8th & Walnut). Trackless trolleys were removed from Routes 80 and 61 in 1960 and 1961 respectively. Routes 29 and 79 have been "suspended" by SEPTA since 2003, but three trackless trolley lines remain in service today. The three surviving electric trolleybus lines lines operate out of Frankford Depot in the lower Northeast section of Philadelphia.

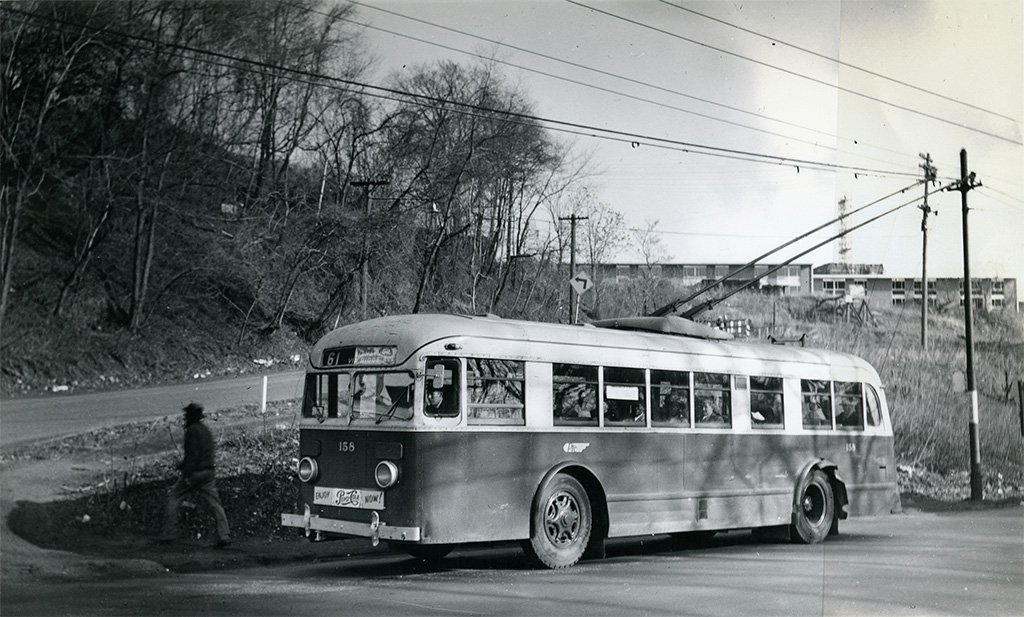

The photograph at right shows Brill trackless trolley no. 158 in service on Route 61. PTC drivers nicknamed this series of trackless trolleys "jeeps." Location is Ridge Avenue at Schoolhouse Lane; date is March 6, 1954. (Click on the image to view a larger photo, courtesy of the R. S. Short collection.)
PRT trackless no. 158

click on this map The map at left shows the pre-2003 trackless trolley system in green. Dashed green lines show previously abandoned trackless routes. To place the trackless routes in context, the Market-Frankford El and Broad Street Subway lines are shown in black. Click on the map for an enlarged view.

Trackless trolleys combine the best features of trolleys, that is, their minimal levels of noise and air pollution, with the flexibility of a bus; that is, they can steer around obstructions in the street. One only has to stand at a street corner as a trackless trolley pulls away from a stop to appreciate the total lack of diesel fumes and engine roar, compared to a diesel bus. As cities realize the importance of maintaining the Quality of Life in their neighborhoods, the benefits of trackless trolley service should be obvious.

As late as 1981, SEPTA kept two fleets of ancient trackless trolleys in service. Brill tracklesses built in 1947 equipped the Routes 29 and 79 in South Philadelphia. Marmon-Herrington tracklesses built in 1949 and 1955 operated on the Routes 59, 66, and 75 in North and Northeast Philadelphia. Most of the photos on this page show the Brills and Marmons in their last years.

In 1981, a fleet of 110 new AM General trolleybuses were purchased to replace the Brills and Marmons. At first, the new electrics were so trouble-prone that the manufacturer was forced to recall the entire fleet. More than one driver of an AMG had been jolted by 600 volts when putting the pole up to the wire. Once the problems with the AMGs were ironed out (and AM General dropped out of the trolleybus-building business), the old green Marmons and Brills were finally retired in the summer of 1981.

In June 2003, the SEPTA board voted to suspend all trackless trolley service "for one year."

With the AM General trackless trolleys in need of replacement, new ETBs were procured. Anti-electric pro-diesel bus factions in SEPTA management used that opportunity to further dismantle the electric transit infrastructure inherited from PTC. Only enough trolleybuses were ordered to serve the three Northeast Philadelphia electric routes. The south Philadelphia routes would be served by diesel buses -- this despite opposition from half a dozen South Philadelphia neighborhood groups, the Clean Air Council, and others. SEPTA proved, once again, that it is an agency accountable to no one.

June 2007 -- The pilot New Flyer trackless trolley, no. 800, arrived in Philadelphia for testing. Thirty-seven more would follow, and currently provide service on Routes 59, 66 and 79.


Scenes from better days:

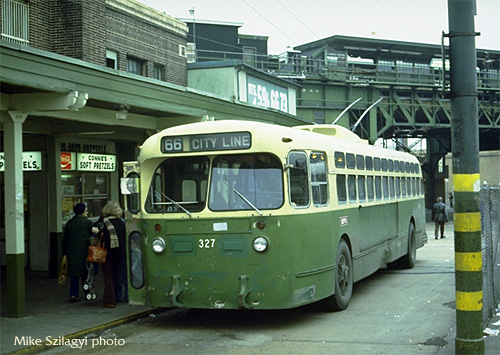

Marmon at Frankford Terminal Forty-three 300-series Marmon-Herrington trackless trolleys were purchased by PTC when the Route 66 was converted from a streetcar line in 1955. The Route 66 starts at the northern terminus of the Market-Frankford El, and runs 6 miles to the city line at Knights Road in Torresdale. An extra set of wires on this route allows for express service during rush hours.
December 17, 1977 photo © Mike Szilagyi




marmon builders plate Of the 1624 trolleybuses built for 16 American cities by Marmon Herrington in Indianapolis, Indiana, 71 were built for Philadelphia.
photo © Mike Szilagyi

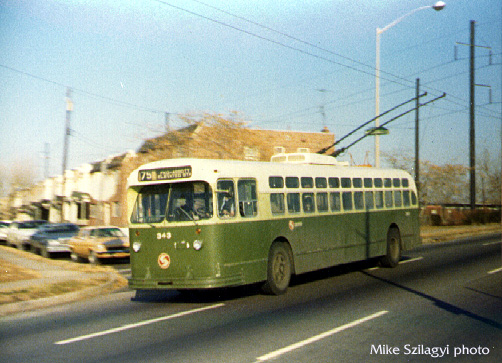

Marmon on Roosevelt Blvd Route 75 runs from the Margaret-Orthodox station of the Frankford El, west along Wyoming Avenue, connecting to the Broad Street Subway in Logan, and on to lower Germantown where connections could be made to the Routes 23 and 53 trolleys. Here Marmon 343 runs two blocks along the southbound "outer drive" of the Roosevelt Boulevard in Logan. The Route 75 was rerouted through Logan when this line was converted from streetcars in 1948.
December 5, 1976 photo © Mike Szilagyi

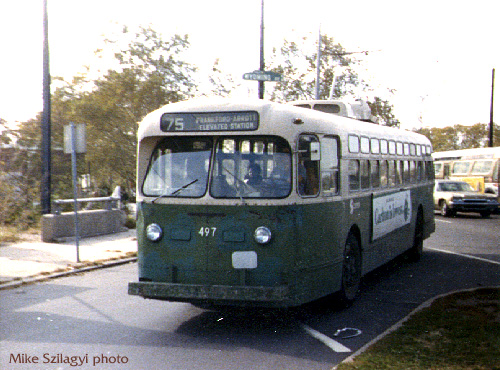

Marmon at Roosevelt & Wyoming Across all twelve lanes of Roosevelt Boulevard from the photo above, Marmon 497 turns from the Boulevard to resume its eastbound run on Wyoming Avenue. The twenty-eight 400-series Marmons were built in 1949, and were one window shorter than the 300-series Marmons constructed in 1955.
November 1, 1976 photo © Mike Szilagyi

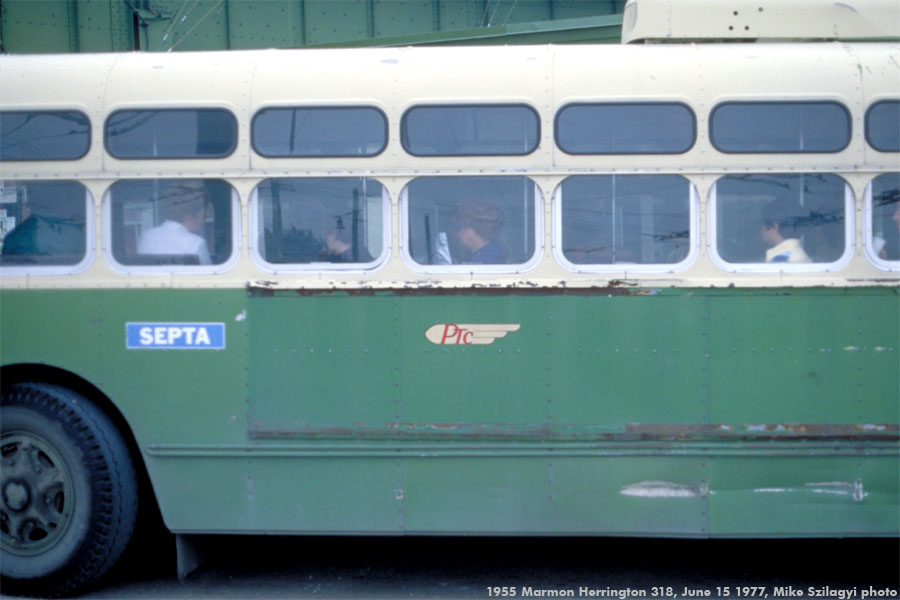

PTC Wing in 1977 When SEPTA took over the PTC in 1968, the PTC wing emblem on thousands of transit vehicles disappeared almost overnight. A plain rectangle lettered "SEPTA" was slapped over each Wing. But Marmon-Herrington trackless trolley 318 kept its PTC Wing at least until summer 1977, when this photo was taken at Frankford Depot. The Wing seems to have survived beneath an advertising panel, only briefly revealed each time the advertising card was changed. By 1977, the bracket meant to hold the advertising cards had been removed.
June 15, 1977 photo © Mike Szilagyi

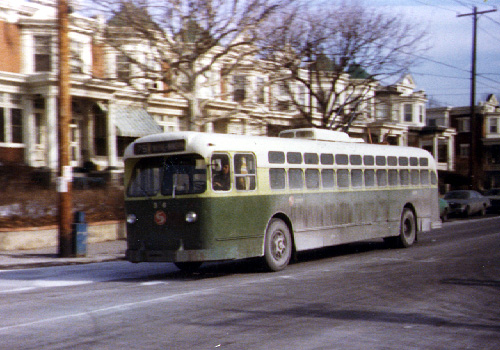

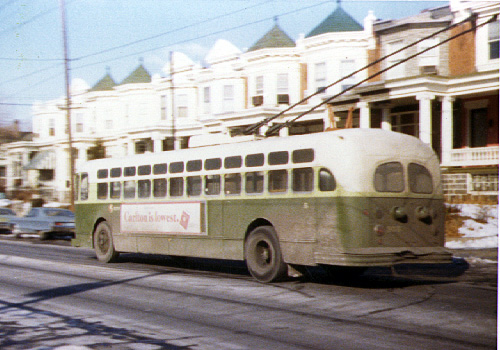

Marmon going at 9th & Wyoming Marmon coming at 9th & Wyoming Winter road salt has coated the two-tone green and white paint on this 1955 Marmon, seen here westbound on Wyoming Avenue at 9th Street. Nine hundred and fifty-seven rowhouses on seventeen square blocks in the Logan section of Philadelphia have since been demolished, as their settling foundations caused collapses and gas leaks. A corrupt city administration eighty years ago set up this disaster, by ordering all coal ash in the city to be hauled to this site. The land happened to be owned by real estate developer friends of the then-mayor. The marshy flood plain along Wingohocking Creek was filled with as much as 40 feet of ash, and the townhouses built on this unstable fill began settling almost as soon as they were completed.
January 22, 1977 photos © Mike Szilagyi

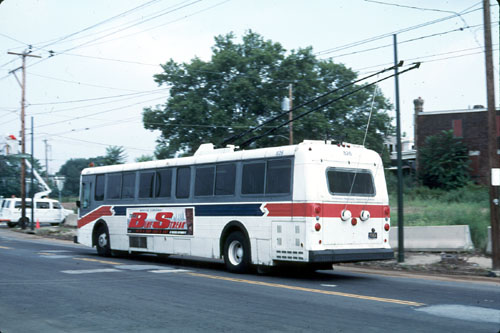

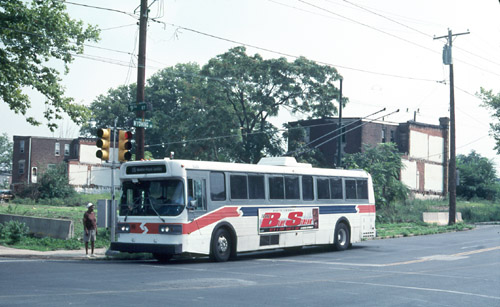

AMG trackless going at 9th & Wyoming AMG trackless coming at 9th & Wyoming Here is the exact same location, 22 years later.

Trackless trolleys continue to serve on this route, although ridership has declined in recent years. In these photos, AM General trackless 826 heads westbound on Route 75. El and terminal reconstruction at the eastern end of this line forced the substition of diesel buses for several years.
September 1999 photos by Mike Szilagyi

Scroll to the bottom of this page for more information about the "Logan Triangle."

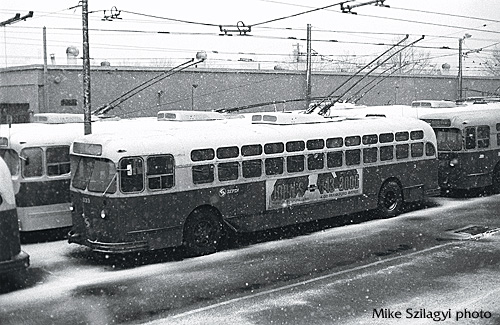

Marmon 333 in snow in Frankford yard Frankford Depot was totally rebuilt from streetcar barn to a bus garage by the new National City Lines (General Motors) management in 1955. In 1980 Marmon-Herrington trackless trolleys still provided service on the three trolleybus routes that radiated from Frankford.
March 13, 1980 photo © Mike Szilagyi

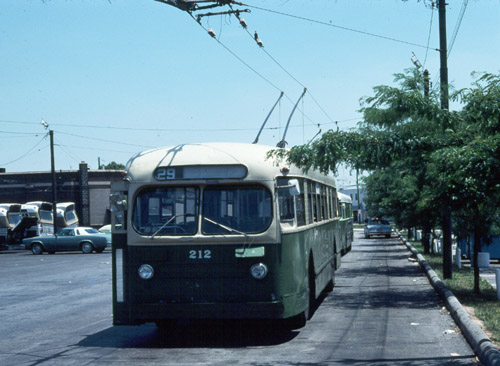

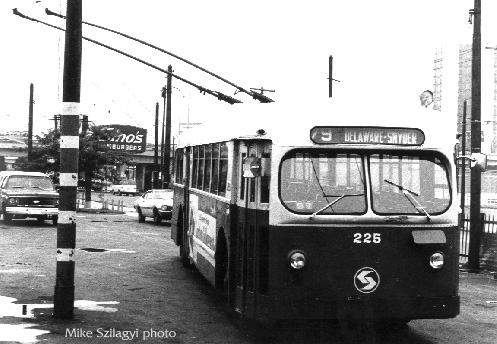

Brill trackless at Southern Brill trackless at Southern Sixty-five Brill model TC-44 trackless trolleys were purchased in 1947 by PTC for service on Routes 59 and 75 in Northeast Philadelphia. Relatively short coaches, only 36 feet in length, in later years the last of the Brills were assigned to routes 29 and 79 in South Philadelphia, where they remained in service until 1980.
August 4, 1979 photo © Mike Szilagyi

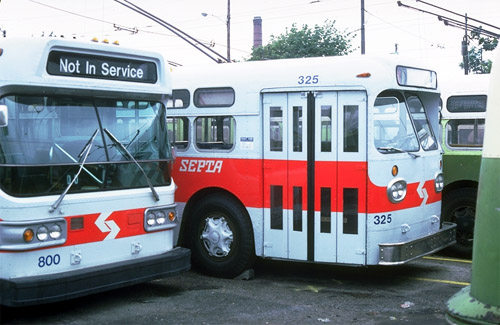

Rebuilt Marmon 325 Before ordering new trackless trolleys, SEPTA experimented with rebuilding the existing fleet. 1955 Marmon-Herrington no. 325 was thoroughly rebuilt with state of the art chopper control, and body modifications which included dual headlights from a GMC "fishbowl" diesel bus, and application of the white-with-red-and-blue-band SEPTA paint scheme that would soon be applied to all SEPTA vehicles. This photo shows the 325 in the yard at Frankford Depot, alongside the first new trackless, AMG 800.
photo © Mike Szilagyi

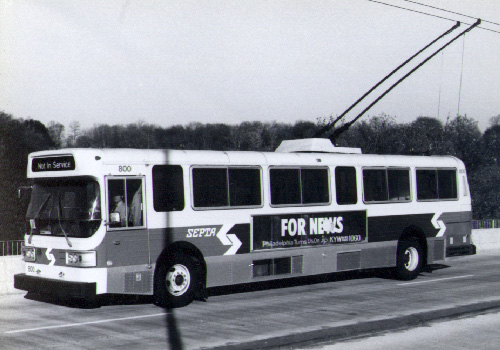

AMG 800 on Wyoming Av bridge The AM General trackless trolleys were the first new tracklesses in twenty-five years in Philadelphia. Here brand new 800 poses on the newly rebuilt Wyoming Avenue bridge in Juniata Park, on a charter excursion. Despite their modern looks, these new coaches had been poorly designed. They would prove to be such lemons that the manufacturer opened a plant in Philadelphia were repairs could be made. They were the last trolleybuses built by AMG.
November 17, 1979 photo © Mike Szilagyi

AMG on Castor Avenue Trackless trolley service on Routes 59 and 66 stretches into far Northeast Philadelphia. Many neighborhoods in the "far northeast" have not seen the demographic shifts that have occurred in other neighborhoods: crime rates tend to be lower and urban blight contained to small pockets. This photo was taken in the spring of 2000 on a beautiful stretch of Castor Avenue in the lower northeast, just a couple blocks west of Frankford.

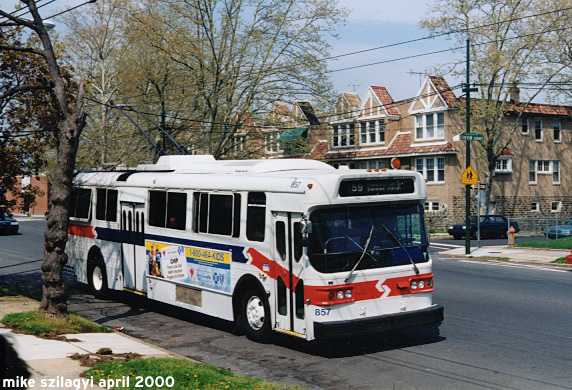

AMG trackless 857 southbound on Castor Avenue in April 2000, photo by Mike Szilagyi. This is one of two AMG coaches retrofitted with a ThermoKing air conditioner.

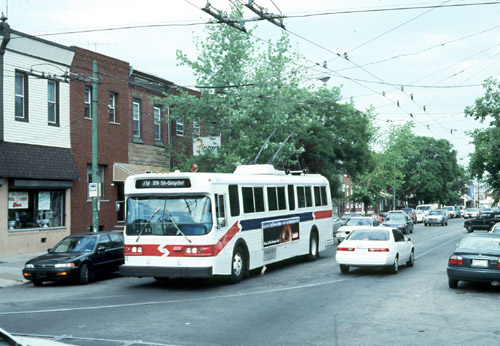

AMG on Snyder Avenue Until 2003, trackless trolleys served Routes 29 and 79 in South Philadelphia, on Tasker and Morris Streets, and Snyder Avenue respectively. At the location in this photo, overhead wires for the Route 79 trackless intersect with those of the Route 23 trolley on 12th Street. Also visible in the photo is the trolley track used by Route 23 streetcars turning back at Snyder Avenue. Streetcars have not operated on the Route 23 since 1992 (save for occasional charters and seasonal special service).

In the early 1990s, SEPTA briefly considered converting at least the southern portion of Route 23 trolley (by then a diesel bus line) to trackless trolleys. This would serve to connect the separate South Philly and Northeast Philly portions of the trackless system. Anti-electric pro-diesel factions in SEPTA management won the argument, so the South Philly trackless trolley lines were abandoned instead.
AMG trackless 833 westbound on Snyder Avenue in May 1999, photo by Mike Szilagyi

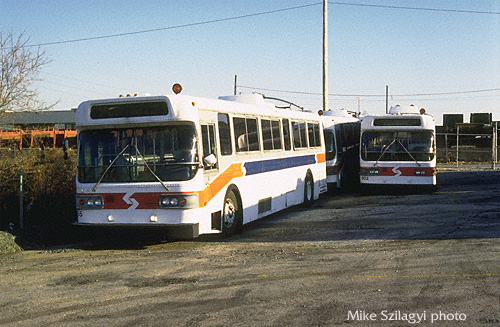

amg out of service Declining ridership on the trackless routes led to the storage of half this relatively new fleet of coaches. Many were stored on SEPTA property at Midvale, and during the 1990s a few even found their way out to the suburban depot on Ridge Pike in Plymouth Township. Some of the unused coaches had been considered for sale to Dayton Ohio's system, but were deemed unsuitable due to their having been stored outdoors. The original number 800 sits just visible, behind the coaches in the photo at left, minus its doors.
Tracklesses at Frontier Depot on December 15, 1997 photo © Mike Szilagyi

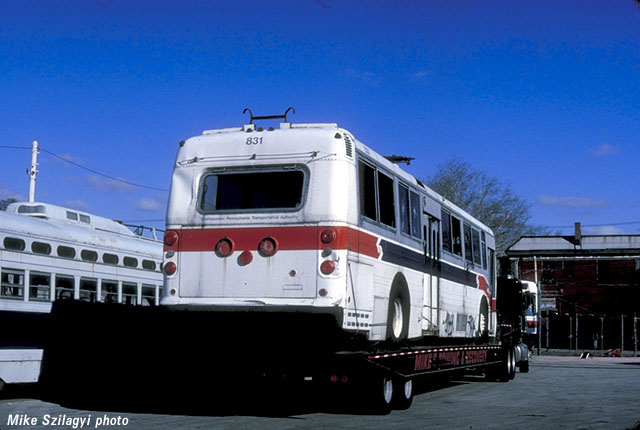

last ride Some AMG trackless trolleys were stored at Luzerne Depot before being sold for scrap. Luzerne, once slated for demolition, is now home to a recycling company.
AMG trackless 831 on its way to scrap yard, photo © Mike Szilagyi

Philadelphia Trolleys Today

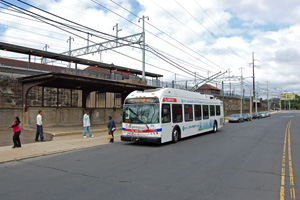

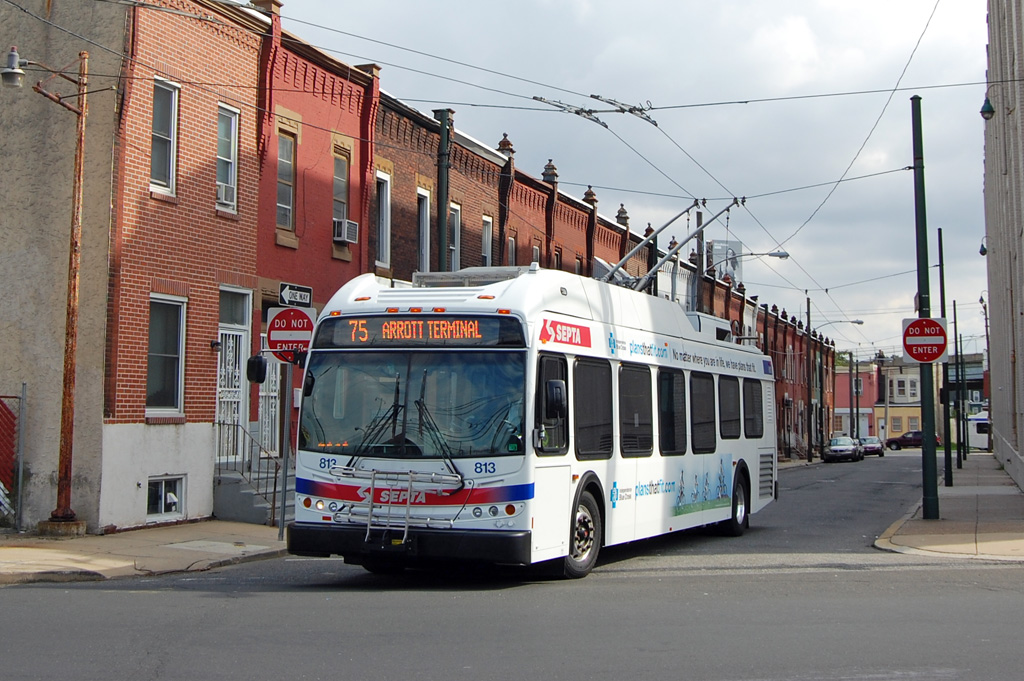

New Flyer trackless trolley 813 turns from Greene Street onto Windrim Avenue at Wayne Junction on October 1, 2011
Philadelphia Trolley History
New Flyer trackless trolley 813 on Windrim Avenue at Wayne Junction regional rail station on October 1, 2011
Follow this link to more photos of the 2008 New Flyer trackless trolleys.
